VALEX D510-D510M
Download Data Sheet
valex-d510-d510-m
FEATURES
- System made up of one clip one bolt and nut.
- Possibility of lateral adjustment.
- Easy and simple installation.
- Easy and simple maintenance.
COMPONENTS
- VALEX D510 (1)
- VALEX D510M (2)
APPLICATIONS
VALEX D510 and D510M is a direct fastening system specifically developed for crane rails, however, it can also be used for train and light (Decauville) rails, with very positive results.
A very rugged, reliable system of contained dimensions, which can be used with every type of crane, independently of the driving system.
| Dimensions [mm] | E | F | G | H | L | L1 | L2 | M | N | O | P | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VALEX D510 | 5 | 12 | 30 | – | 15 | – | – | 9 | 29 | 40 | 40 | 70 |
| VALEX D510-M | – | 12 | 30 | – | 15 | – | – | 9 | 29 | 40 | 40 | 70 |
Valex fastening systems can also be used for several other rail profiles, not listed.
A complete range of compatible rails is available on request.
| RAIL TYPE | A [mm] | B [mm] | C [mm] | Weight [Kg/m] | WITH PAD | WITHOUT PAD |
|---|---|---|---|---|---|---|
| A 45 | 45,00 | 55,00 | 125,00 | 22,10 | – | – |
| A 55 | 55,00 | 65,00 | 150,00 | 31,80 | – | – |
| A 65 | 65,00 | 75,00 | 175,00 | 43,10 | – | – |
| A 75 | 75,00 | 85,00 | 200,00 | 56,20 | – | – |
| A 100 | 100,00 | 95,00 | 200,00 | 74,30 | – | – |
| A 120 | 120,00 | 105,00 | 220,00 | 100,00 | – | – |
| A 150 | 150,00 | 150,00 | 220,00 | 150,30 | – | – |
| CR 104 | 63,50 | 127,00 | 127,00 | 51,59 | – | – |
| CR 105 | 65,10 | 131,80 | 131,80 | 52,09 | – | – |
| CR 135 | 76,20 | 146,00 | 131,80 | 66,97 | – | – |
| CR 171 | 101,60 | 152,40 | 152,40 | 84,83 | – | – |
| MRS 87 A | 101,60 | 152,40 | 152,40 | 86,80 | – | – |
| CR 175 | 102,40 | 152,40 | 152,40 | 86,80 | – | – |
| MRS 125 | 120,00 | 180,00 | 180,00 | 125,00 | – | – |
| S 7 | 25,00 | 65,00 | 50,00 | 6,75 | – | – |
| S 10 | 32,00 | 70,00 | 58,00 | 10,00 | – | VALEX D510/M |
| S 14 | 38,00 | 80,00 | 70,00 | 14,00 | – | VALEX D510/M |
| S 18 | 43,00 | 93,00 | 82,00 | 18,30 | – | VALEX D510/M |
| S 20 | 44,00 | 100,00 | 82,00 | 19,80 | – | VALEX D510/M |
| S 24 | 53,00 | 115,00 | 90,00 | 24,43 | – | VALEX D510/M |
| 25 Kg/m | 50,00 | 115,00 | 90,00 | 25,00 | – | VALEX D510/M |
| S 26 (AFNOR 26) | 50,00 | 110,00 | 100,00 | 26,27 | – | VALEX D510/M |
| 27 E1 (27 UNI) | 50,00 | 120,00 | 95,00 | 27,06 | – | VALEX D510/M |
| AFNOR 30 | 56,00 | 125,50 | 106,00 | 29,98 | – | VALEX D510/M |
| 30 E1 (S 30) | 60,30 | 108,00 | 108,00 | 30,13 | – | VALEX D510/M |
| 33 E1 (S 33) | 58,00 | 134,00 | 105,00 | 33,47 | – | – |
| 36 E1 (36 UNI) | 60,00 | 130,00 | 100,00 | 36,26 | – | – |
| 40 E1 (S41-R14) | 67,00 | 138,00 | 125,00 | 40,95 | – | – |
| 46 E4 (46 UNI) | 65,00 | 145,00 | 135,00 | 46,90 | – | – |
| 49 E1 (S 49) | 67,00 | 149,00 | 125,00 | 49,39 | – | – |
| 50 ES (50 UNI) | 67,00 | 148,00 | 135,00 | 49,90 | – | – |
| 54 E1 (UIC 54) | 70,00 | 159,00 | 140,00 | 54,77 | – | – |
| 60 E1 (UIC 60) | 72,00 | 172,00 | 150,00 | 60,21 | – | – |
GENERAL INSTRUCTIONS
The selection of the fastening system, either for crane, train, or light (Decauville) rails, is a critically important decision both when placing a track or a single rail. The wrong selection could have expensive consequences and create serious problems such as:
- Slow down or shut down of the production process
- Excessive and, or irregular wear of the rails
- Damage of the mechanical components of the crane
- Damage of the supporting base
- Damage of the fastening systems
Valex fastening systems were developed through experience accumulated over more than 100 years of activity.
Valex fastening systems offer a wide range of alternatives, which would perform in the most effective and efficient way in every possible situation.
INSTALLATION INSTRUCTIONS
- Carefully align the rails.
- Place the clips in direct contact with the rails.
- Position the washer and insert the screw.
- Perform an initial light tightening.
- Complete the tightening process according to recommended torque.
TECHNICAL SPECIFICATIONS D510
- Side load 20 KN
- Torque tightening 75 Nm
- Bolt 8.8 gr M12 – NOT INCLUDED
- Steel quality S275JR
TECHNICAL SPECIFICATIONS D510M
- Side load 18 KN
- Torque tightening 75 Nm
- Bolt 8.8 gr M12 – NOT INCLUDED
- Steel quality S275JR

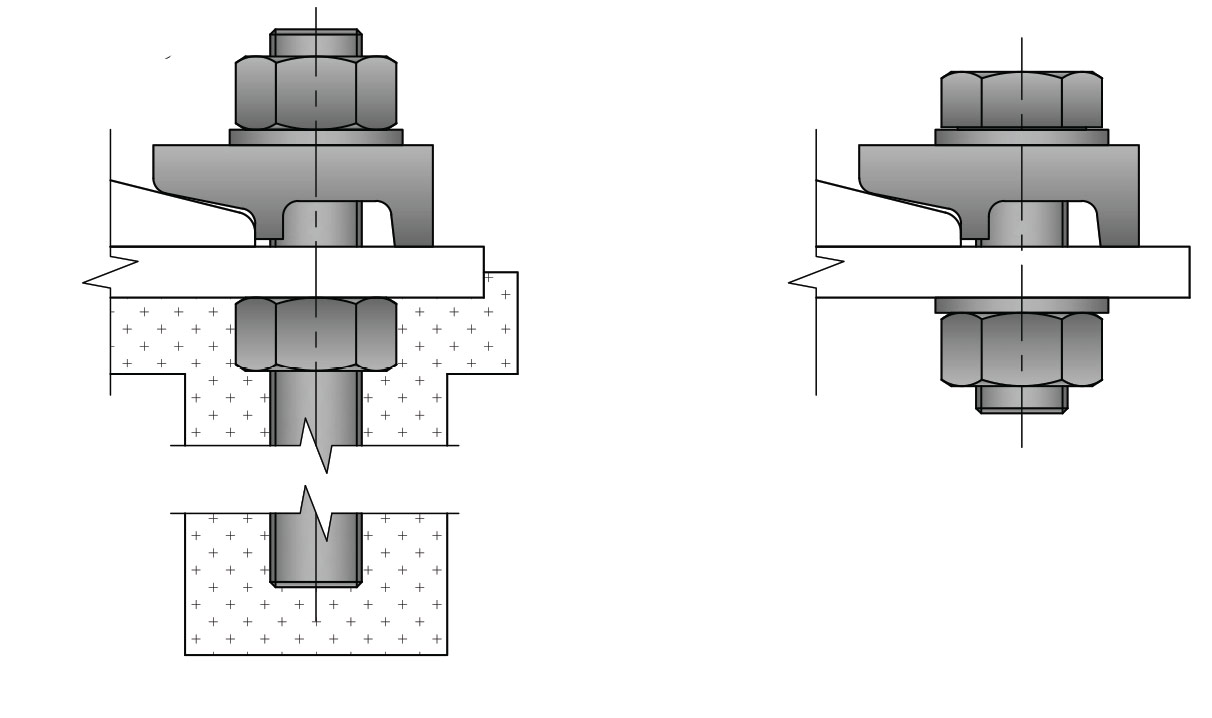

FIXING DETAILS
VALENTE S.p.A. aims to provide maximum assistance and total customer satisfaction, guarantees the origin and quality of its products, and supplies any reasonably requested documentation.
VALENTE S.p.A. reserves the right to modify the information contained in the technical data sheet without notice and disclaims any responsibility for any inaccuracies or changes in the reported data.
