FEATURES
- System made up of one clip one bolt and nut.
- Possibility of lateral adjustment.
- Easy and simple installation.
- Easy and simple maintenance.

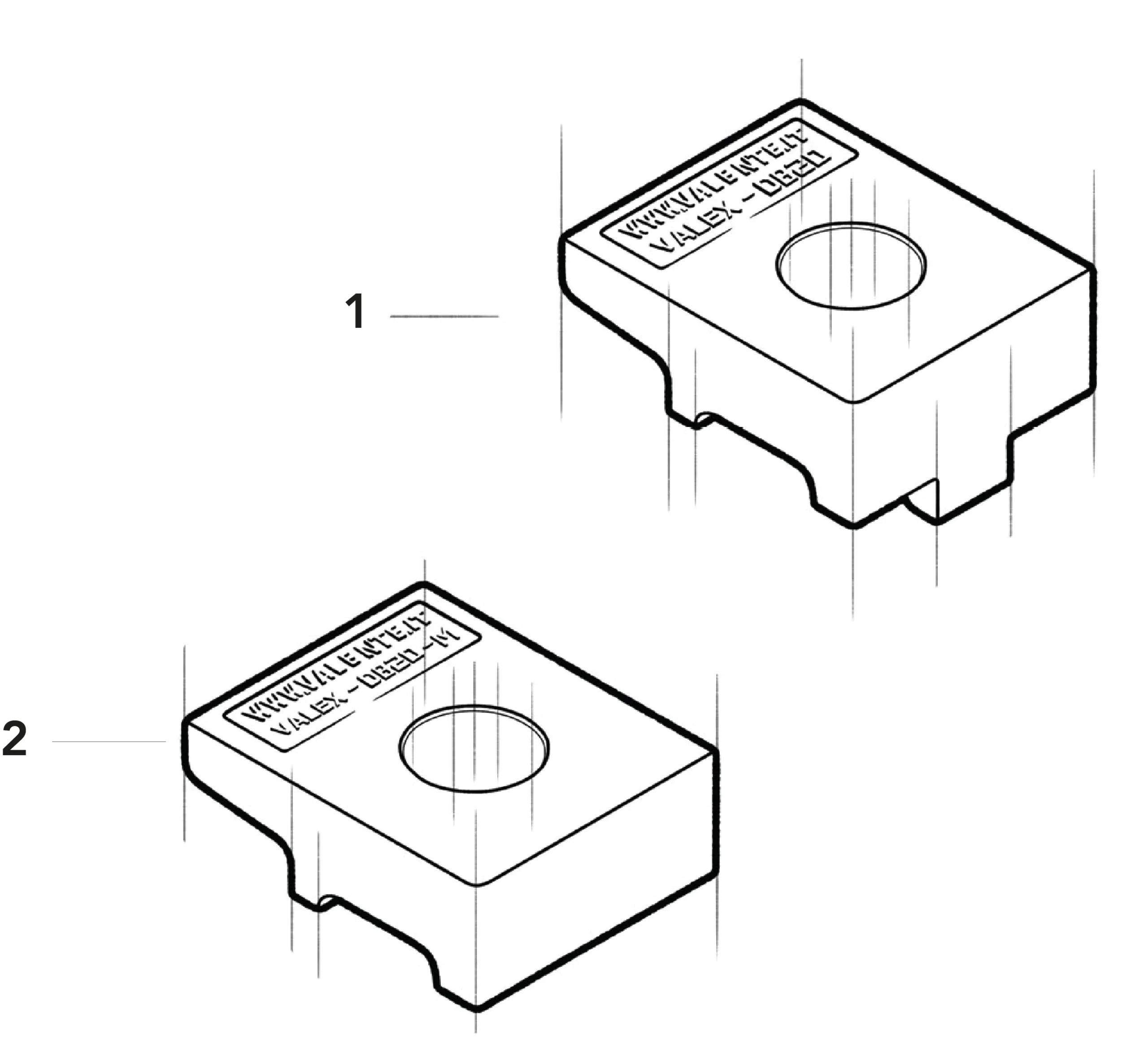

COMPONENTS
- VALEX D820
- VALEX D820M
APPLICATIONS
VALEX D820 and D820M is a direct fastening system specifically developed for crane rails, however, it can also be used for
train and light (Decauville) rails, with very positive results.
A very rugged, reliable system of contained dimensions, which can be used with every type of crane, independently of the driving system.
Dimensions [mm] | E | F | G | H | L | L1 | L2 | M | N | O | P | Weight [g] |
---|---|---|---|---|---|---|---|---|---|---|---|---|
VALEX D820 | 7 | 20 | 45 | – | 19 | – | – | 12 | 35 | 55 | 45 | 230 |
VALEX D820-M | – | 20 | 46 | – | 19 | – | – | 12 | 35 | 55 | 45 | 230 |
RAIL TYPE | A [mm] | B [mm] | C [mm] | Weight [Kg/m] | WITH PAD | WITHOUT PAD |
---|---|---|---|---|---|---|
A 45 | 45,00 | 55,00 | 125,00 | 22,10 | – | VALEX D820/M |
A 55 | 55,00 | 65,00 | 150,00 | 31,80 | – | VALEX D820/M |
A 65 | 65,00 | 75,00 | 175,00 | 43,10 | – | – |
A 75 | 75,00 | 85,00 | 200,00 | 56,20 | – | – |
A 100 | 100,00 | 95,00 | 200,00 | 74,30 | – | – |
A 120 | 120,00 | 105,00 | 220,00 | 100,00 | – | – |
A 150 | 150,00 | 150,00 | 220,00 | 150,30 | – | – |
CR 104 | 63,50 | 127,00 | 127,00 | 51,59 | – | – |
CR 105 | 65,10 | 131,80 | 131,80 | 52,09 | – | – |
CR 135 | 76,20 | 146,00 | 131,80 | 66,97 | – | – |
CR 171 | 101,60 | 152,40 | 152,40 | 84,83 | – | – |
MRS 87 A | 101,60 | 152,40 | 152,40 | 86,80 | – | – |
CR 175 | 102,40 | 152,40 | 152,40 | 86,80 | – | – |
MRS 125 | 120,00 | 180,00 | 180,00 | 125,00 | – | – |
S 7 | 25,00 | 65,00 | 50,00 | 6,75 | – | – |
S 10 | 32,00 | 70,00 | 58,00 | 10,00 | – | – |
S 14 | 38,00 | 80,00 | 70,00 | 14,00 | – | VALEX D820/M |
S 18 | 43,00 | 93,00 | 82,00 | 18,30 | – | VALEX D820/M |
S 20 | 44,00 | 100,00 | 82,00 | 19,80 | – | VALEX D820/M |
S 24 | 53,00 | 115,00 | 90,00 | 24,43 | – | VALEX D820/M |
25 Kg/m | 50,00 | 115,00 | 90,00 | 25,00 | – | VALEX D820/M |
S 26 (AFNOR 26) | 50,00 | 110,00 | 100,00 | 26,27 | – | VALEX D820/M |
27 E1 (27 UNI) | 50,00 | 120,00 | 95,00 | 27,06 | – | VALEX D820/M |
AFNOR 30 | 56,00 | 125,50 | 106,00 | 29,98 | – | VALEX D820/M |
30 E1 (S 30) | 60,30 | 108,00 | 108,00 | 30,13 | – | VALEX D820/M |
33 E1 (S 33) | 58,00 | 134,00 | 105,00 | 33,47 | – | – |
36 E1 (36 UNI) | 60,00 | 130,00 | 100,00 | 36,26 | – | VALEX D820/M |
40 E1 (S41-R14) | 67,00 | 138,00 | 125,00 | 40,95 | – | – |
46 E4 (46 UNI) | 65,00 | 145,00 | 135,00 | 46,90 | – | VALEX D820/M |
49 E1 (S 49) | 67,00 | 149,00 | 125,00 | 49,39 | – | – |
50 ES (50 UNI) | 67,00 | 148,00 | 135,00 | 49,90 | – | – |
54 E1 (UIC 54) | 70,00 | 159,00 | 140,00 | 54,77 | – | – |
60 E1 (UIC 60) | 72,00 | 172,00 | 150,00 | 60,21 | – | – |
Valex fastening systems can also be used for several other rail profiles, not listed.
A complete range of compatible rails is available on request.
GENERAL INSTRUCTIONS
The selection of the fastening system, either for crane, train, or light (Decauville) rails, is a critically important decision both when placing a track or a single rail. The wrong selection could have expensive consequences and create serious problems such as:
- Slow down or shut down of the production process
- Excessive and, or irregular wear of the rails
- Damage of the mechanical components of the crane
- Damage of the supporting base
- Damage of the fastening systems
Valex fastening systems were developed through experience accumulated over more than 100 years of activity.
Valex fastening systems offer a wide range of alternatives, which would perform in the most effective and efficient way in every possible situation.
INSTALLATION INSTRUCTIONS
- Place the lower clip facing the rail according to the drawing at the distance indicated in the technical cards.
- Weld the two perpendicular sides of the lower clip and the horizontal side opposite to the rail with either electrode or rod.
- Insert the screw in the lower clip.
- Place the upper clip and nut.
- Proceed with a light tightening.
- Control the lineup of the rails.
- Complete tightening.
- Complete tightening.
TECHNICAL SPECIFICATIONS D820
- Side load 70 KN
- Torque tightening 220 Nm
- Bolt 8.8 gr M16 – NOT INCLUDED
- Steel quality S275JR
TECHNICAL SPECIFICATIONS D820M
- Side load 65 KN
- Torque tightening 220 Nm
- Bolt 8.8 gr M16 – NOT INCLUDED
- Steel quality S275JR
FIXING DETAILS
VALENTE S.p.A. aims to provide maximum assistance and total customer satisfaction, guarantees the origin and quality of its products, and supplies any reasonably requested documentation.
VALENTE S.p.A. reserves the right to modify the information contained in the technical data sheet without notice and disclaims any responsibility for any inaccuracies or changes in the reported data.
